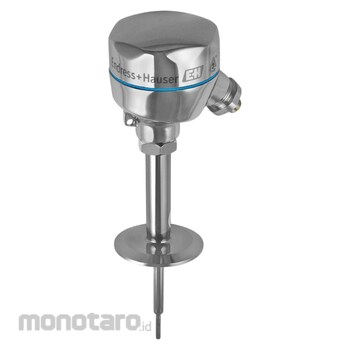

iTHERM ModuLine TM401
Hygienic modular thermometer
TM401-UR1C1D2A13A40A31AA1A1
Fundamental metric RTD direct contact thermometer for hygienic applications
Endress Hauser Hygienic Modular Thermometer
#Grup produk P111927898
Sebelum PPN:
Rp7.199.900 - Rp9.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy | Class A acc. to IEC 60751 |
|---|---|
| Certification | SIL (transmitter only) |
| Characteristic/Application | metric style hygienic applications aseptic applications hygienic process connections with neck |
| Insert/Probe | without exchangeable insert |
| Integration Head Transmitter | yes (4 ... 20 mA, HART) |
| Maximum Immersion Length on Request (mm) | up to 400 (15,75inch) |
| Maximum Process Pressure (bar) | 40 (static) at 20 |
| Maximum Process Pressure (psi) | 580 (static) at 20 |
| Measuring Principle | Resistance Temperature Detector |
| Measuring/Application Task | Thermometer |
| Operating Temperature Range (°C) | PT100: -50 to 200 |
| Operating Temperature Range (°F) | PT100: -58 to 392 |
| Outer Diameter Protection Tube/Insert (inch) | 0.24, 0.31 |
| Outer Diameter Protection Tube/Insert (mm) | 6.0, 8.0 |
| Process Connection | compression fitting triclamp microclamp clamp connections acc. to ISO2852 Ingold G3/4\" Liquiphant G1\" Liquiphant Varivent SMS 1147 screwed pipe joint acc. to DIN 11851 |
| Protection Tube/Thermowell Material | 316L |
| Response Time | Depending on configuration |
| Surface Roughness Ra (μm) | 0.76 (30 μin); 0.38 (15 μin) |
| Thermowell/Protection Tube | without (not intended to use with thermowell) |
| Tip Shape | straight reduced |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Excellent value for money and fast deliveryUser-friendly and reliable from product selection to maintenance
International certification: hygiene standards as per 3-A® , EHEDG, ASME BPE, FDA, TSE Certificate of Suitability
Wide range of process connections
Use
Field of applicationThis iTHERM thermometer has been designed to meet the basic requirements of the Food & Beverages and Life Sciences industries at the best price. It offers a variety of versions within a clearly segmented standard product. The result: Time and cost savings by simple and fast product selection. The device uses basic technology with features such as a fixed, non-replaceable insert, a wide range of process connections and international certification at an excellent value for money.
Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries
Measuring range: –50 to +200 °C (–8 to +392 °F)
Pressure range up to 50 bar (725 psi)
Protection class: up to IP69K
Can be used in non-hazardous areas
