Nivotester FTW325
FTW325-B2B1A
Point level switch with intrinsically safe signal circuit for connection to a conductive sensor

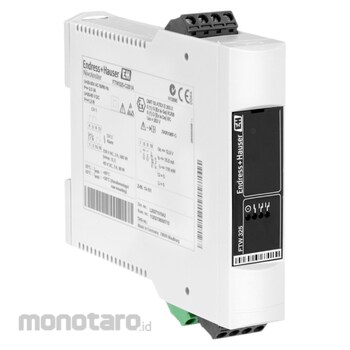

Endress Hauser FTW325 Series Conductive Level Switch
#Grup produk P111927791
Spesifikasi
| Ambient Temperature (°C) | -20 to 60 |
|---|---|
| Ambient Temperature (°F) | -4 to 140 |
| Certificates/Approval | ATEX, FM, CSA, NEPSI, EAC |
| Characteristic/Application | 2-channel level measurement device, level limit, switch delay, two-point control |
| Communication | 2 relays SPDT/DPDT |
| Measuring Principle | Conductive |
| Measuring/Application Task | Point Level / Liquids |
| Minimum Density of Medium (uS) | min. 10 |
| Safety Approval | Overfill protection WHG |
| Supply/Communication (V) | 85 to . 253 AC 20 to . 30 AC 20 to . 60 DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Cost-effective point level switch for conductive liquidsIntrinsically safe signal circuit EEx ia IIC for using sensors in hazardous areas
Line monitoring up to the sensor
Configurable sensitivity range
Alarm relay can be switched as second level relay (SPDT)
Easy wiring thanks to pluggable terminal blocks
Use
Field of applicationThe Nivotester FTW325 is a point level switch with intrinsically safe signal circuit for connection to a conductive sensor. It has a compact housing for easy series mounting on a standard DIN rail in the cabinet.
For point level detection in tanks for liquids also for hazardous areas. Overfill prevention for tanks with flammable or non-flammable water-polluting liquids. Pump dry running protection.
Mounting: Standard rails in cabinet
Two-point control and point level detection
Ambient temperature: -20 to +60°C (-4 to +140°F)
International explosion protection certificates
