Capacitance
Point level detection
Liquipoint FTW23
FTW23-AA7MWVJ
Cost effective point level switch for water-based liquids

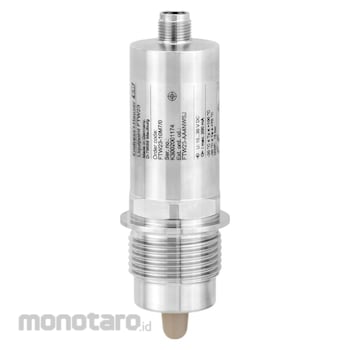

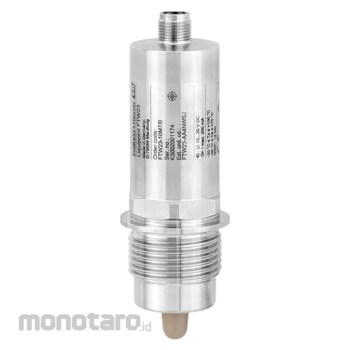

Endress Hauser FTW23 Series Capacitance Level Switch
#Grup produk P111927737
Sebelum PPN:
Rp10.999.900 - Rp12.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Temperature (°C) | -20 to +70 |
|---|---|
| Ambient Temperature (°F) | -4 to +158 |
| Application Limit | Conductive foam is recognizes as a liquid |
| Certificates/Approval | CSA C/US |
| Characteristic/Application | Compact point level switch for using in water based liquids |
| Communication | DC PNP IO- Link |
| Design Approval | EN 10204-3.1 |
| Hygienic Approval | 3A, EHEDG |
| Main Wetted Parts | Sensor: 316L Sensor isolation: PEEK |
| Measuring Principle | Capacitive Liquid |
| Measuring/Application Task | Point Level / Liquids |
| Options | Weld-in adapter, Process adapter for hygienic process connections |
| Process Connection | Thread G1, G1/2, G3/4, M24 |
| Process Pressure/Maximum Overpressure Limit (bar) | Vacuum ... 16 |
| Process Pressure/Maximum Overpressure Limit (psi) | Vacuum ... 232 |
| Process Temperature (°C) | Standard: -20 to 100 Cleaning: -20 to 135 for 1h -4 to 275F for 1h |
| Specialities | CIP and SIP suitable |
| Supply/Communication (V) | 10 to 30 DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Easy installation thanks to compact design, even in tight conditions or where access is restrictedIO-Link reduces costs and complexity due to easy configuration of the devices via engineering tools
CIP and SIP cleanability ensured - up to protection class IP 69
Individual adjustment to each medium not necessary
LED display for on-site function check
Use
Field of applicationThe Liquipoint FTW23 is developed and built for the food industry and meets all international hygiene requirements. The device also fits perfectly for industrial applications in all industries. It is intended for use in applications in liquid media without build-up. The IO-Link capability allows easy parameter setting.
For use in storage tanks, mixing vessels and pipes. For water-based liquids; Ex works for media with dielectric constant > 20, with adjustment via IO-Link for media with dielectric constant > 1.5 discernible.
Process connections: Threads
Temperature: -20 to +100°C (-4 to +212°F), CIP/SIP to 135°C (275°F) for 1 hour
Pressure: -1 to 16bar abs (-14.5 to 232psi)
Hygienic certificates
