Vibronic
Point level detection

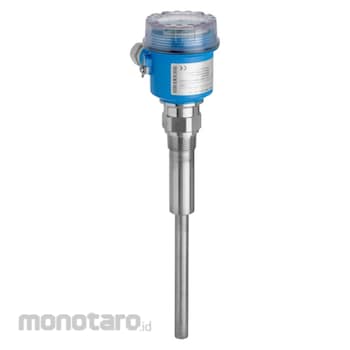

Soliphant FTM20
FTM20-AG22A
Compact limit switch for bulk solids
Endress Hauser FTM20 Series Vibronic Level Switch
#Grup produk P111927719
Spesifikasi
| Ambient Temperature (°C) | -40 to 70 |
|---|---|
| Ambient Temperature (°F) | -40 to 160 |
| Certificates/Approval | ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI, INMETRO, EAC |
| Characteristic/Application | Compact point level switch for fine grained solids Grain size <= 25 mm (<= 0.98 in) Single rod No calibration required Not affected by build-up or external vibration Robust Switch value visible from outside |
| Communication | DPDT relay DC PNP max 350mA |
| Main Wetted Parts | 316L |
| Measuring Principle | Vibration Solids |
| Measuring/Application Task | Point Level / Solids |
| Minimum Density of Medium (g/L) | 200 |
| Process Connection | Thread R 1inch R 1 1/2inch 1 1/4inch NPT 1 1/2inch NPT |
| Process Pressure/Maximum Overpressure Limit (bar) | Vacuum ... 25 |
| Process Pressure/Maximum Overpressure Limit (psi) | Vacuum ... 360 |
| Process Temperature (°C) | -40 to +150 |
| Process Temperature Range (°F) | -40 to 300 |
| Sensor Length (inch) | 9 |
| Sensor Length (mm) | 225 |
| Supply/Communication (V) | 10 - 45 DC 19 - 253 AC relay DC PNP 10 - 45 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
No calibration required, easy commissioning (plug and play)Measurement not affected by build-up or external vibration
No mechanically moved parts, free of maintenance
Sensor material 316L, abrasion resistant even with building materials
Plastic housing with cover with sight glass, switch status visible from outside;
also aluminium housing available
Not affected by flow noises
Available with explosion protection certificates
Use
Field of applicationSoliphant FTM20 is a point level switch for applications with fine-grained or coarse-grained, non-fluidized bulk solids. The various designs means the device has a wide range of applications. Certificates are also available for use in dust and hazardous areas.
Point level switch for fine grained solids
Process connections: Threads
Temperature: -40 to +150°C (-40 to +300°F)
Pressure: -1 to +25bar (-14.5 to +360psi)
Sensor material: 316L
International explosion protection certificates
