Capacitance
Point level detection

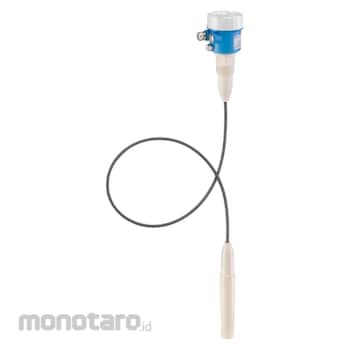

Minicap FTC262
FTC262-AA32D1
Designed for light bulk solids
Endress Hauser FTC262 Series Capacitive Level Capacitance
#Grup produk P111927612
Spesifikasi
| Ambient Temperature (°C) | -40 to 70 |
|---|---|
| Ambient Temperature (°F) | -40 to 158 |
| Application Limit | Solids, grain size max. 30mm (1.2\"), DK min 1,5 Flexural strength 1400 N (at probe tip) |
| Certificates/Approval | ATEX , IEC Ex, FM, CSA, NEPSI, UK Ex |
| Characteristic/Application | No calibration on start-up Active build-up compensation Mechanically robust The rope probe can be shortened (optimum matching to the measuring point) |
| Communication | PNP transistor output Relay output (potential-free change-over contact / SPDT) |
| Main Wetted Parts | PPS = Polyphenylene sulphide (glass fibre content approx. 40%) |
| Maximum Tensile Strength (N) | 3000 |
| Measuring Principle | Capacitive Solid |
| Measuring/Application Task | Point Level / Solids |
| Options | Aluminium Housing |
| Process Connection | R 1 1/2 NPT 1 1/2 |
| Process Pressure/Maximum Overpressure Limit (bar) | -1 to 6 |
| Process Pressure/Maximum Overpressure Limit (psi) | -14.5 to 90 |
| Process Temperature (°C) | -40 to +80 |
| Process Temperature Range (°F) | -40 to +176 |
| Sensor Length (inch) | min. 20, max 236 |
| Sensor Length (mm) | min. 500, max 6000 |
| Specialities | Rope shortening parts to be supplied by the customer |
| Supply/Communication (V) | 10.8 to 45 DC, DC-PNP 3-wire 20 to 253 AC, or 20 to 55 DC, Relay output |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Simple mounting and commissioning without calibrationMechanical safety, cost-efficiency and long operating life due to no wearing parts
High operational safety and reliability due to active build-up compensation
Optimized storage by simply shortening the rope probe on site
Use
Field of applicationMinicap FTC262 is a simple and cost-effective rope probe for point level detection in bulk solids, particularly suited to applications involving aggressive media and heavy build-up. It is designed for point level detection of light bulk solids, e.g. grain products, flour, milk powder, animal feed, cement, chalk or gypsum.
For point level detection of light bulk solids, with a grain size up to max. 30mm and a dielectric constant εr ≥ 1.6.
Typical applications: Grain products, flour, milk powder, animal feed, cement, chalk or gypsum.
Process connection: Threads
Temperature: -40 to +80°C (-40 to +176°F)
Pressure: -1 to +6bar (-14.5 to +90psi)
Sensor length: 500mm (20") to 6,000mm (236")
International explosion protection certificates, overfill prevention WHG
