Capacitance
Point level detection

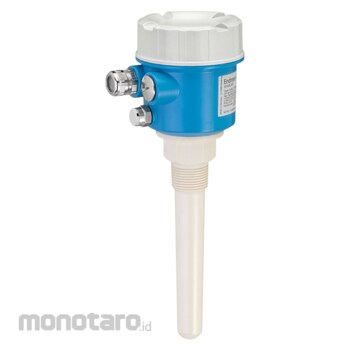

Minicap FTC260
FTC260-AA4D2
Designed for light bulk solids
Endress Hauser FTC260 Series Capacitive Level Capacitance
#Grup produk P111927597
Sebelum PPN:
Rp14.999.900 - Rp20.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Temperature (°C) | -40 to 70 |
|---|---|
| Ambient Temperature (°F) | -40 to 158 |
| Application Limit | Solids, grain size max. 30mm (1.2\"), DK min 1,6 Flexural strength 1400 N (at probe tip) |
| Certificates/Approval | ATEX , IEC Ex, FM, CSA, NEPSI, UK Ex |
| Characteristic/Application | Compact rod probe with build-up compensation easy start up |
| Communication | PNP transistor output Relay output (potential-free change-over contact / SPDT) |
| Main Wetted Parts | PPS = Polyphenylene sulphide (glass fibre content approx. 40%) |
| Measuring Principle | Capacitive Solid |
| Measuring/Application Task | Point Level / Solids |
| Options | Aluminium Housing |
| Process Connection | R1inch NPT1inch |
| Process Pressure/Maximum Overpressure Limit (bar) | -1 to 25 |
| Process Pressure/Maximum Overpressure Limit (psi) | -14.5 to 360 |
| Process Temperature (°C) | -40 to +120 |
| Process Temperature Range (°F) | -40 to +248 |
| Sensor Length (inch) | 5.51 |
| Sensor Length (mm) | 140 |
| Specialities | FDA-listed material |
| Supply/Communication (V) | 10.8 to 45 DC, DC-PNP 3-wire 20 to 253 AC, or 20 to 55 DC, Relay output |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Simple mounting and commissioning without calibrationMechanical safety, cost-efficiency and long operating life due to no wearing parts
High operational safety and reliability due to active build-up compensation
Use
Field of applicationMinicap FTC260 is a simple and cost-effective rod probe for point level detection in bulk solids, particularly suited to applications involving aggressive media and heavy build-up. It is designed for point level detection of light bulk solids, e.g. grain products, flour, milk powder, animal feed, cement, chalk or gypsum.
For point level detection of light bulk solids, with a grain size up to max. 30mm and a dielectric constant εr ≥ 1.6.
Typical applications: Grain products, flour, milk powder, animal feed, cement, chalk or gypsum.
Process connection: Threads
Temperature: -40 to +80°C (-40 to +176°F)
Pressure: -1 to +25bar (-14.5 to +360psi)
Sensor length: 140mm (5.51")
International explosion protection certificates, overfill prevention WHG
