Hydrostatic
Level measurement
Waterpilot FMX21
FMX21-AA111FGD10A
Reliable and robust level probe with ceramic measuring cell and HART

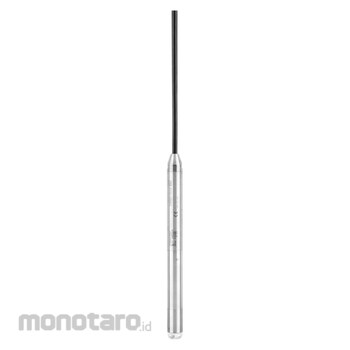

Endress Hauser FMX21 Series Hydrostatic Level Sensor
#Grup produk P111927579
Sebelum PPN:
Rp32.999.900 - Rp33.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Temperature (°C) | -10 to 70; Diameter 29 mm (1.14inch): 0 to 50 |
|---|---|
| Ambient Temperature (°F) | 14 to 158; Diameter 29 mm (1.14inch): 32 to 122 |
| Characteristic | Compact probe with ceramic cell for hydrostatic level measurement, Diameter = 22 mm: General applications, fresh water Diameter = 42 mm: Waste water applications Diameter = 29 mm: Salt water applications |
| Characteristic/Application | Compact probe with ceramic cell for hydrostatic level measurement, Diameter = 22 mm: General applications, Fresh water Diameter = 42 mm: Waste water applications Diameter = 29 mm: Salt water applications |
| Communication | 4...20 mA 4...20 mA HART |
| Liquid Measuring Principle | Hydrostatic |
| Long Term Stability | 0.1% of URL/year |
| Marine Approval | GL/ ABS/ BV/ DNV/ LR |
| Measuring Cell (bar) | 0.1 to 20 |
| Measuring Cell (psi) | 1.5 to 300 |
| Measuring/Application Task | Pressure, Continuous / Liquids |
| Pressure Certificates/Approval | ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, UK Ex |
| Pressure Drinking Water Approval | NSF/ KTW/ ACS |
| Pressure Measuring Principle | Hydrostatic pressure |
| Process Connection | Suspension clamp Cable mounting screws |
| Process Temperature (°C) | -10 to 70 , Diameter 29mm (1.14inch): 0 to 50 |
| Process Temperature Range (°F) | 14 to 158; Diameter 29mm (1.14inch): 32 to 122 |
| Reference Accuracy | 0.2; 0.1 (optional) |
| Specialities | Automatic density compensation Version w/o metal parts in contact to process |
| Supply Voltage (V DC) | 10.5 to 35 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Robust overload-resistant high purity ceramic sensor (99.9% Al2O3)Flexible scaling of 4 to 20mA with superimposed HART 6.0 output
Highest level accuracy using temperature compensated density correction
Simultaneous measurement of level and temperature with optionally integrated Pt100 temperature sensor
Extensive range of accessories provides complete measuring point solutions
Climate proofed sensor thanks to completely potted electronics and 2-filter pressure compensation system
Small outer diameter of 22mm (0.87") version suitable for drinking water applications and for use in bore holes and wells with small diameters
Use
Field of applicationThe Waterpilot FMX21 transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and environmental applications for hydrostatic level measurement. With HART output, the measuring ranges can be freely adjusted and a density-compensated level measurement can be activated. It is certified for drinking water and offers integrated temperature measurement. Versions for applications in wastewaters and sludges or usage in salt water are also available.
Three different versions for drinking water, wastewater and sewage, saltwater.
Process connections: Suspension clamp, cable gland
Temperature: –10 to +70°C (14 to 158°F)
Measuring range: 0 to 20bar / 200m H20 (0 to 300psi / 600ft H2O)
Accuracy: ±0.2%, "Platinum" ±0.1%
International explosion protection certificates, marine approvals, drinking water approval
