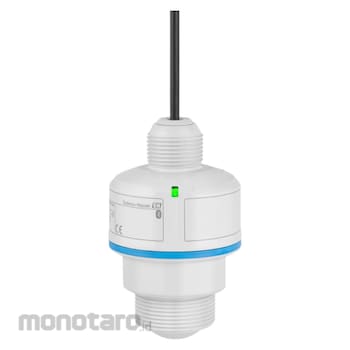

Micropilot FMR20B - radar sensor for basic applications
FMR20B-AABADTBMWDGWEEBR7
Simple and efficient level measurement in liquids and solids
Solid Application Limits
DK < 1.6
Reduction of the max. possible measuring range due to:
Media with poor reflective properties cone of repose
extremely loose surface of bulk solids, e.g. bulk solids with a
low bulk density during pneumatic filling
buildup, especially of moist products.
Alternative for these applications: FMR67B
Endress Hauser FMR20 Series Radar Level Sensor
#Grup produk P111927436
Spesifikasi
| Accuracy (inch) | 0.08 |
|---|---|
| Accuracy (mm) | ±2 |
| Ambient Temperature (°C) | -40 to 80 |
| Ambient Temperature (°F) | -40 to 176 |
| Certificates/Approval | ATEX, C/US, EAC Ex, JPN Ex, KC Ex, INMETRO Ex, NEPSI Ex, UK Ex |
| Communication | 4...20 mA HART Bluetooth® wireless technology |
| Continuous/Liquid Measuring Principle | Level radar |
| Frequency (GHz) | W-Band (~80) |
| Liquid Characteristic/Application | Water & Wastewater (e.g. basins / channels / rivers / dams / lift stations / storm water basins / pump control) Utility applications in all industries Storage tanks |
| Liquid Maximum Measurement Distance (ft) | 98.4 |
| Liquid Maximum Measurement Distance (m) | 30 |
| Main Wetted Parts | PVDF, PBT/PC |
| Measuring/Application Task | Continuous / Liquids, Continuous / Solids |
| Process Pressure/Maximum Overpressure Limit (bar) | -1 to 3 |
| Process Pressure/Maximum Overpressure Limit (psi) | -14.5 to 43 |
| Process Temperature (°C) | -40 to +80 |
| Process Temperature Range (°F) | -40 to +176 |
| Safety Approval | Overfill protection WHG |
| Specialities | Bluetooth® commissioning Operation and maintenance SmartBlue App Heartbeat Verification |
| Supply/Communication | 2-wire (HART, 4 to 20 mA) Bluetooth® wireless technology and App (optional) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Fast commissioning and operation thanks to guided setup sequences (wizards)Bluetooth connectivity enables easy, reliable and encrypted wireless remote access
Device identification during Bluetooth connection thanks to “It’s me-function” (LED flashing) and status indication via LED
Simple device selection thanks to clear segmentation and easy configuration
Heartbeat Technology allows on-demand verification and diagnostics guided through the wizard without process interruption
Use
Field of applicationThe Micropilot FMR20B offers continuous non-contact level measurement with 80 GHz technology. Guiding wizards enable easy handling for installation, commissioning and operation. Efficiency through reduced downtime can be realized with on-demand process verification and device diagnostics, thanks to Heartbeat Technology. The compact design of the device also allows use in narrow installation conditions.
The Micropilot FMR20B is a free space radar device with a measuring range of up to 30m (98ft) for liquid and solid applications in the Water & Wastewater, Mining, Minerals & Metals and Food & Beverage industries, as well as for utility applications across all industries:
Open baisins
River monitoring
Sewer management
Pump station / lift station
Open channel flow
IBC and storage tanks
Silos
Stockpiles
Pneumatic conveying
