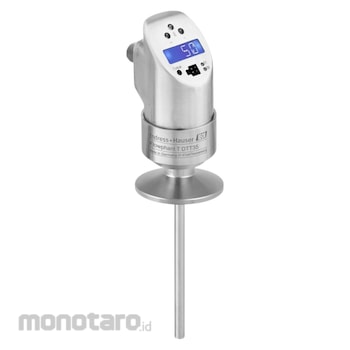

Flowphant T DTT35
Flow switch
DTT35-A1C111DB2ACC
Safe monitoring of flow rates and temperature in hygienic processes. Compact and cost-saving.
Endress Hauser Flowphant DTT35 Series Mass Flow Rate Flow Switch for Liquid
#Grup produk P111927418
Spesifikasi
| Degree of Protection | IP 66 |
|---|---|
| Display/Operation | LED LCD-Display |
| Maximum Measuring Error (%) | 2 - 10 (per measurement range) |
| Maximum Process Pressure (bar) | 100 |
| Maximum Process Pressure (psi) | 1740 |
| Measuring Principle | Thermal |
| Measuring Range (inch) | 1 to 40 |
| Measuring/Application Task | Liquids |
| Media Temperature Range (°F) | -4 to +185; CIP able to 266 |
| Medium Temperature Range (°C) | -20 to +85; CIP able to 130 |
| Nominal Diameter Range | DN 25 to 1000 |
| Output | 1 x PNP switchable output + 1 x 4 to 20mA analog output |
| Product Headline | Flow switch for hygenic liquid applications, intelligent / programmable; insertion style |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Practically no pressure lossConfiguration software FieldCare for quick configuration and reliable storage of device settings
Optional: second switch output or 4 to 20 mA analog output for temperature monitoring or for outputting the flow as a percentage
Function check and process information onsite thanks to digital display at device
Top housing section which can be rotated 310° and rotatable display make it possible to read the measured values in all orientations
3-A approval
Use
Field of applicationThe switch is designed for the safe monitoring and display of relative mass flow rates of liquid media in hygienic applications, for example the monitoring of cooling water circulation systems and filter monitoring in the beverage industry. It can be selected between one or two switch outputs as well as one switch output and one standardized analog output for flow rates or temperature values. A variety of hygienic process connections leads to a flexible use.
Flow switch for monitoring and displaying relative mass flow rates of liquid media in the range from 0.03 to 3 m/s (0.1 to 9.84 ft/s). Flowphant T DTT35 − with process connections for hygienic applications.
Application examples:
Monitoring cooling water circulation systems of pumps, turbines, compressors and heat exchangers
Leak monitoring in process lines
Monitoring pump functionality
Monitoring lubrication systems
Filter monitoring in the beverage industry
