1-channel transmitter

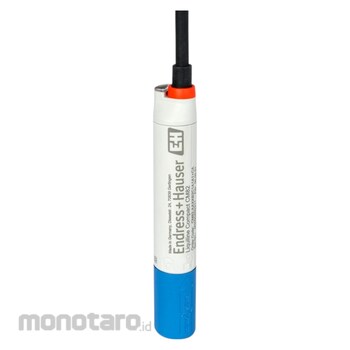

Liquiline Compact CM82
CM82-AAXAB2F1A1A1
Multiparameter field device for hazardous and non-hazardous applications in all industries
All sectors, supporting all sensors with the blue Memosens plug-in head, enviromental sector
Endress Hauser CM82 pH Meter
#Grup produk P111927232
Sebelum PPN:
Rp68.999.900 - Rp80.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Additional Certifications | CE, CSA C/US GP |
|---|---|
| Characteristic | Liquiline CM82 is a two-wire transmitter for all areas of process engineering |
| Connection | Connection of digital sensors with Memosens-Protocol |
| Design | Liquiline CM82 is optionally equipped with Bluetooth for comfortable remote commissioning via Smartphone/Tablets |
| Dimensions (inch) | Diameter: 0.75; Length: 4.52 |
| Dimensions (mm) | Diameter: 18.95; Length: 114.7 |
| Ingress Protection | IP67, IP68, NEMA Type 6 |
| Input | One channel transmitter |
| Installation | Connection of digital sensors with Memosens-Protocol |
| Material | Housing, cover: Peek 151 Strain relief: EPDM Axial ring Peek 450 G |
| Measuring Principle | Potentiometric |
| Measuring/Application Task | pH, ORP / Redox, Conductivity, Oxygen |
| Output Communication | 4 to 20mA, HART |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Easy operation:Use your existing tablets and smartphones for operation and commissioning.
Fast and reliable:
A secure Bluetooth connection allows you to check measuring points that are dangerous or difficult to access from a safe distance.
Benefit from all the advantages of Memosens technology:
Memosens sensors offer you the safest data transmission, the highest measured value availability and total ease of use.
Space-saving installation:
The two-wire device fits inside an assembly and does not require its own power supply.
Suitable for all locations:
Whether your measuring point is exposed to dust, vapor, rain, snow, heat or cold, the CM82 will always be exactly the right transmitter for you.
Use
Field of applicationThe Liquiline Compact CM82 is the smallest transmitter for Memosens sensors. Its slender housing measures only 11 cm long and 2 cm wide, including a connection to which you can attach your sensor directly, without a cable. Together with the sensor, it fits into most assemblies and couldn’t be easier to install. Via a uniquely secure Bluetooth connection, you can see all nearby CM82 measuring points on your tablets or smartphones and operate them conveniently from a distance.
Liquiline Compact CM82 can be used in all industries and their utilities and supports all sensors with the blue Memosens plug-in head:
pH sensors
ORP sensors
Conductivity sensors
Oxygen sensors
The loop-powered two-wire transmitter features the following protocols and interfaces:
4...20 mA
HART
Bluetooth
With its international explosion protection approvals, such as IECEx, ATEX, and CSA, the Liquiline Compact CM82 is suitable for hazardous area use.
