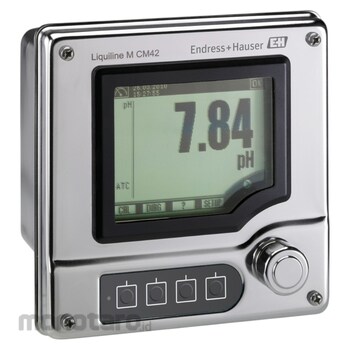

1-channel transmitter
Liquiline M CM42
CM42-MEA000EAT00
Two-wire field device for hazardous and non-hazardous area use in chemicals, life sciences and food
Chemical processes, pharmaceuticals industry, foodstuff technology, applications in hazardous areas
Endress Hauser CM42 pH Meter
#Grup produk P111927153
Sebelum PPN:
Rp90.999.900 - Rp99.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Characteristic | Liquiline M CM42 is a modular two-wire transmitter for all areas of process engineering |
|---|---|
| Conductivity Measuring Principle | Conductive; Resistance measurement |
| Design | Depending on the ordered version, Liquiline M CM42 has one or two analog current outputs or it can be connected to field busses as per FOUNDATION Fieldbus, PROFIBUS PA and HART protocol |
| Dimensions (inch) | Plastic housing: 5.67x5.67x5.83; Stainless Steel: 6.85x6.85x5.28 inch |
| Dimensions (mm) | Plastic housing: 144x144x148; Stainless Steel: 174x174x134 |
| Ex Certification | ATEX, IECEx, FM, CSA, NEPSI, EAC, UKEx, JPN Ex |
| Ingress Protection | IP66/67, NEMA 4X |
| Input | One channel transmitter for Memosens and analog (pH, ORP, conductivity) |
| Material | Plastic or stainless steel housing with EPDM sealings |
| Measuring/Application Task | pH, ORP / Redox, Conductivity, Oxygen |
| ORP/Redox Measuring Principle | Sensor ORP / Redox; ORP measurement |
| Output Communication | 1/2 x 4 to 20mA, HART, Profibus PA, FF, Additional second output possible, also later (pH, Conductivity, Oxygen); 1/2 x 4 to 20mA, HART, Profibus, FF, Additional second output possible, also later (ORP/Redox) |
| Oxygen Measuring Principle | Amperometric oxygen measurement; Connection of oxygen sensors with Memosens coupling |
| Temperature Sensor | Applicable: Pt100, Pt1000, NTC 30K (pH, ORP/Redox) ; Applicable: Pt100, Pt1000 (Conductivity) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Simple commissioning with quick setup and navigatorThe Memosens technology allows plug & play with pre-calibrated Memosens sensors
Less storage thanks to modular design
Predictive maintenance system detects when a sensor has to be cleaned, calibrated or replaced
Use
Field of applicationLiquiline M CM42 is the robust transmitter for pH/ORP, conductivity or oxygen measurement in all process applications. It is the best choice for demanding environments be it hygienic applications, hazardous areas or functional safety areas. Liquiline’s intuitive operating concept simplifies commissioning, handling, and maintenance saving you time every day. Easy switching of parameters and seamless system integration give you the flexibility to adapt it exactly to your measuring task.
The Liquiline CM42 transmitter is suitable for all process applications, for example in these industries and their utilities:
Chemicals
Food & Beverages
Life Sciences
Power & Energy
Oil & Gas
Primaries & Metal
Liquiline CM42 features the following protocols and interfaces:
0/4...20 mA
HART
PROFIBUS PA
FOUNDATION Fieldbus
With its international explosion protection approvals, such as IECEx, ATEX, FM, CSA, TIIS and NEPSI, the transmitter is suitable for hazardous area use.
