SHM Electromagnetic Flow Meters: Digital Flow Meter for Conductive Liquid.
- Tube and Flange are made from Stainless Steel, Electrode from titanium & lining from PTFE.
- No movable parts in this meters, simple structure, reliable.
- The accuracy are not affected by the change of measured medium's pressure, density, temperature, viscosity & other.
- Power Consumption below 20W.
- Warranty 2 Years (Full Services & Spare Parts)

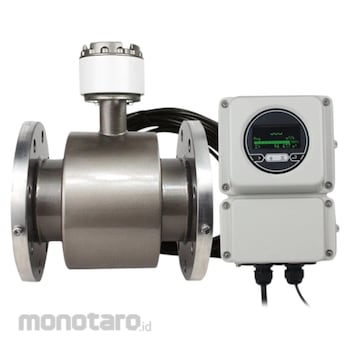

SHM Electromagnetic Flow Meter
#Grup produk P111926738
Spesifikasi
| Diameter Size (inch) | 3/4 (DN20) |
|---|---|
| Head Material | Epoxy Coated Alumunium |
| Body Material | Epoxy Coated Alumunium |
| Flange Material | SS304 |
| Lining Material | Polytetrafluoroethylene (PTFE) |
| Electrode Material | Ti (Titanium) |
| Nominal Pressure (MPa) | 1.6 (16 bar) |
| Power Supply (V) | 220 (AC); 24 (DC) |
| Protection Grade | IP 65 (Head); IP 68 (Body) |
| Signal Output | Analog 4-20mA, 0Hz-50KHz, RS485, Pulser |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Use
Widely applied in the fields of chemical, petroleum, metallurgy, food and beverage & pharmaceutical industry, water & waste water, agriculture & irrigation, paper making.Ulasan Produk
