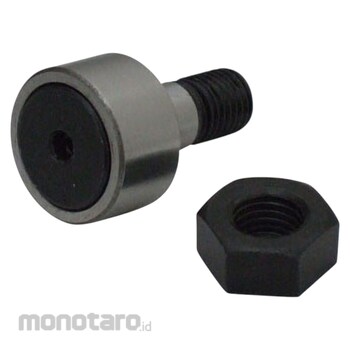

IKO (NIPPON THOMPSON) Standard Cam Follower CF BR
#Grup produk P111922510
Spesifikasi
| Dimension B (mm) | 15.2 |
|---|---|
| Dimension B1 (mm) | 40.2 |
| Dimension B2 (mm) | 25 |
| Dimension B3 (mm) | 6 |
| Dimension C (mm) | 14 |
| Dimension C1 (mm) | 0.6 |
| Basic Static Load Rating (N) | 9790 |
| Chamfer dimension r (mm) | 0.6 (minimum allowable dimension) |
| Dimension D (mm) | 30 |
| Dimension G (mm) | M12×1.5 |
| Dimension G1 (mm) | 13 |
| Dimension H (mm) | 6 |
| Dimensions d1 ( mm) | 12 |
| Dimensions g1 (mm) | 4 |
| Dimensions g2 (mm) | 3 |
| Maximum Tightening Torque (N m) | 21.9 |
| Outer Diameter (mm) | phi 30 |
| Shape | With hexagon socket |
| Type | No seal |
| Width (mm) | 14 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
