Air-cooled heat exchanger with uniquely designed heat dissipation fins for efficient heat exchange.
Blocks dust and moisture! Brings the temperature inside the control panel closer to the outside air temperature.

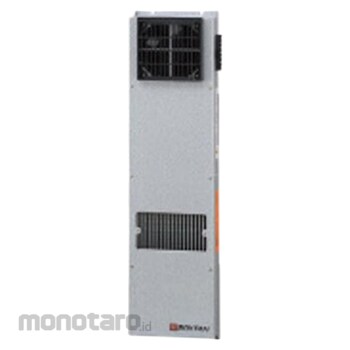

Ohm Electric Box Fan External Side Mounting Type
#Grup produk P111922459
Spesifikasi
| Compatibility | UL1995 standard |
|---|---|
| Mounting Method | External side mounting type |
| External Dimensions (mm) | 170x680x60 (WxHxD) |
| Cooling Method | Air Cooling |
| Ambient Humidity During Use (%RH) | 20 to 85 *No condensation |
| Ambient Temperature (°C) | -10 to +70 *No freezing |
| Noise Level (dB(A)) | 59 |
| Rated Capacity (W/K) | 2023/08/10 |
| Rated Current Consumption (A) | 0.25/0.23 |
| Rated Power Consumption (W) | 44/42 |
| Voltage (V) | (50/60Hz) Single-phase AC200 to AC230 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*The rated capacity is the nominal capacity when the difference between the inside and outside air temperatures is 20K.*Please use single-phase AC100V or single-phase AC200V.
*The rated current consumption and rated power consumption are manufacturer measured values at an ambient temperature of +25℃ and humidity of 50%RH.
*The outer dimensions are dimensions excluding the terminal block and guard.
*Please leave a space of 150mm or more between the heat exchanger and other units or walls so that air circulation is not obstructed outside and inside the control panel. The capacity will decrease.
*Please connect the power supply to the heat exchanger via an appropriate breaker.
*This product is for indoor use only.
*Do not use in places where flammable gases, corrosive gases, or substances that destroy insulation are generated or filled.
*Do not use in places where there is vibration or impact.
*Electrical work is required to install this product. Please consult a professional or qualified person.
