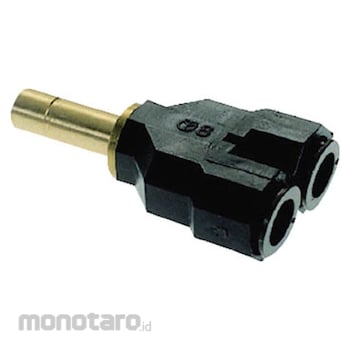

CHIYODA Y Connector (Resin Body)
#Grup produk P111911295
Spesifikasi
| Dimension A (mm) | 63.4 |
|---|---|
| Dimension B (mm) | 40 |
| Dimension C (mm) | 12 |
| Dimension L (mm) | 44 |
| Dimension P (mm) | 20 |
| Maximum Operating Pressure (MPa) | 1 |
| Operating Temperature Range (°C) | -5 to 60 |
| Operating Vacuum Pressure (kPa) | -100 |
| Shape | Y connector |
| Suitable Tube | TE, TP, MTP (polyurethane tube), TN (nylon tube) |
| Suitable Tube Outer Diameter (mm) | 12 |
| Suitable fluid | Compressed air, vacuum |
| Tube insertion length (mm) | 19.4 |
