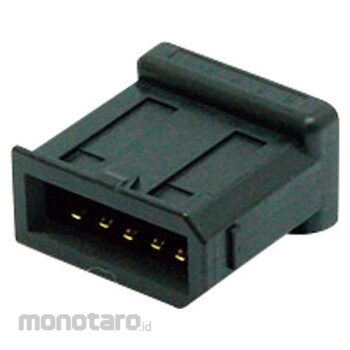

3M SCR Connector Wire Mount Receptacle
#Grup produk P111888270
Spesifikasi
| Applicable Connector | 36110-30000FD, 36110-1110PL, 36110-2220PE |
|---|---|
| Color | Black |
| Conductor Diameter (mm) | Suitable wire = Outer diameter Φ2.8mm or less (including shrink tube) |
| Material | Nylon, copper alloy |
| Number of Poles | 10 |
| Operating Temperature Range (°C) | -55 to 85, 85%RH or less |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Current (A) | Max 1/pole |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Bellows type contact with excellent resistance to prying and vibration. The 2mm contact pitch and special solder tail arrangement achieve both miniaturization and compatibility with large diameter cables.Ulasan Produk
