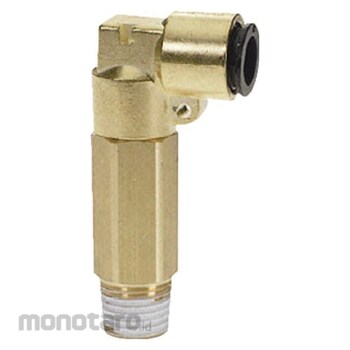

CHIYODA Long Male Elbow (Metal Body)
#Grup produk P111859117
Spesifikasi
| Connector Thread Type | R |
|---|---|
| Dimension A (mm) | 17.7 |
| Dimension B (mm) | 42 |
| Dimension C (mm) | 11 |
| Dimension L (mm) | 38 |
| Maximum Operating Pressure (MPa) | 1 |
| Operating Temperature Range (°C) | -5 to 60 |
| Operating Vacuum Pressure (kPa) | -100 |
| Screw Size | 1/8 |
| Shape | Longmail elbow |
| Suitable Tube | TE, TP, MTP (polyurethane tube), TN (nylon tube) |
| Suitable Tube Outer Diameter (mm) | 4 |
| Suitable fluid | Compressed air, vacuum |
| Tube insertion length (mm) | 15 |
| Width Across Flats H (mm) | 10 |
