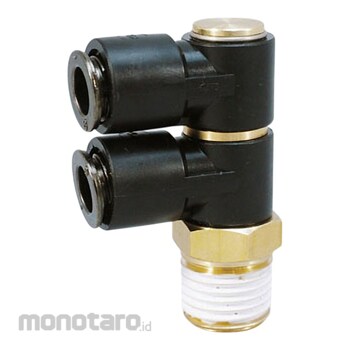

CHIYODA Double Banjo (Resin Body)
#Grup produk P111829578
Spesifikasi
| Connector Thread | 1/4 |
|---|---|
| Dimension A (mm) | 21.7 |
| Dimension B (mm) | 22.5 |
| Dimension C (mm) | 43.3 |
| Dimension E (mm) | 13 |
| Dimension L (mm) | 16.5 |
| Dimension P (mm) | 13.5 |
| Main Unit Material | Polyacetal |
| Material (screw) | C3604 (brass) |
| Maximum Operating Pressure (MPa) | 1 |
| O-Ring Materials | NBR (nitrile rubber) |
| Operating Temperature Range (°C) | -5 to 60 |
| Operating Vacuum Pressure (kPa) | -100 |
| Shape | Double banjo |
| Suitable Tube | TE, TP, MTP (polyurethane tube), TN (nylon tube) |
| Suitable Tube Outer Diameter (mm) | 6 |
| Suitable fluid | Compressed air, vacuum |
| Width Across Flats H (mm) | 14 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Easy connection with one touch! Made of brassUlasan Produk
