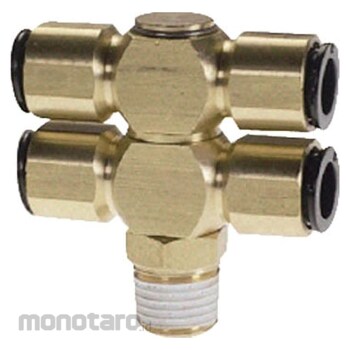

CHIYODA Double Banjo (Metal Body)
#Grup produk P111829550
Spesifikasi
| Connector Thread Type | R |
|---|---|
| Dimension A (mm) | 29.1 |
| Dimension B (mm) | 30.5 |
| Dimension C (mm) | 62.6 |
| Dimension E (mm) | 19 |
| Dimension L (mm) | 22.5 |
| Dimension P (mm) | 20.5 |
| Maximum Operating Pressure (MPa) | 1 |
| Operating Temperature Range (°C) | -5 to 60 |
| Operating Vacuum Pressure (kPa) | -100 |
| Screw Size | 1/2 |
| Shape | Double banjo |
| Suitable Tube | TE, TP, MTP (polyurethane tube), TN (nylon tube) |
| Suitable Tube Outer Diameter (mm) | 12 |
| Suitable fluid | Compressed air, vacuum |
| Tube insertion length (mm) | 19.4 |
| Width Across Flats H (mm) | 21 |
