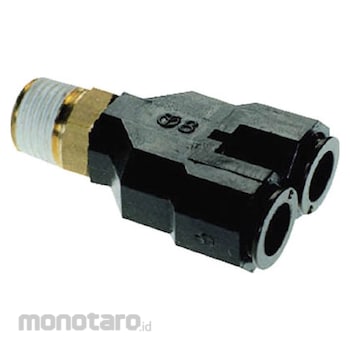

CHIYODA Branch Y (Resin Body)
#Grup produk P111820212
Spesifikasi
| Connector Thread Type | R |
|---|---|
| Dimension A (mm) | 47.3 |
| Dimension B (mm) | 35 |
| Dimension L (mm) | 43.3 |
| Dimension P (mm) | 18 |
| Maximum Operating Pressure (MPa) | 1 |
| Operating Temperature Range (°C) | -5 to 60 |
| Operating Vacuum Pressure (kPa) | -100 |
| Screw Size | 1/8 |
| Shape | Branch Y |
| Suitable Tube | TE, TP, MTP (polyurethane tube), TN (nylon tube) |
| Suitable Tube Outer Diameter (mm) | 10 |
| Suitable fluid | Compressed air, vacuum |
| Tube insertion length (mm) | 18.3 |
| Width Across Flats H (mm) | 17 |
