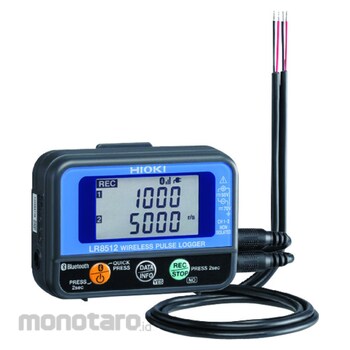

Hioki Wireless Pulse Logger
#Grup produk P111807956
Kondisi Barang:
Spesifikasi
| Content Set | Connection cable (L1010) x 2 ; AA alkaline battery (LR06) (built-in) x 2 ; Operation guide x 1, precautions for using radio waves x 1 ; CD-R (instruction manual, logger utility, wireless logger collector) x 1 |
|---|---|
| DC Voltage (V) | C0 to 50 |
| Depth (mm) | 31 |
| Display Contents | Measured value, recording interval, date, time, alarm, battery level, number of recorded data, maximum value, minimum value |
| Function | Bluetooth, alarm, scaling, recording operation retention, operation error prevention, comment storage, power saving, password authentication |
| Height (mm) | 61 |
| Housing Material | Resin/Plastic |
| Input Form | No-voltage A contact (normally open contact), open collector, voltage input |
| Measurement Current Range (mA-A) | 500.0 to 1000 |
| Measurement Item | Pulse signal 2ch |
| Minimum Current Display (mA) | 0.1 |
| Number of Channels | 2ch |
| Power Source | 2 AA batteries (included) |
| Pulse Integration (pulse) | 0 to 1000M |
| Recording Interval | 0.1/0.2/0.5/1/2/5/10/20/30 seconds, 1/2/5/10/20/30/60 minutes |
| Recording Method | One-time recording (stops recording when memory is full), endless recording (overwrites old data when memory is full) |
| Recording Mode | Instantaneous value recording (records instantaneous values at each recording interval) |
| Rotation Speed (r/s) | 0 to 5000 |
| Width (mm) | 85 |
| Width x Depth x Height (mm) | 85x31x61 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Suitable for measuring pulse integration, logic ON/OFF signals, and rotation speed. - Storage capacity: 500,000 data per channel.
- It is a small 2ch model that does not require installation space.
- Measurement data can be collected on a tablet or computer using Bluetooth wireless technology.
- Real-time collection is also possible with LR8410 or LR8416.
- Measurement data can also be retained while communication is interrupted.
- 3WAY power supply (AC adapter, AA alkaline batteries, external power supply).
Use
- For collecting pulse output data. - For environmental measurement.
