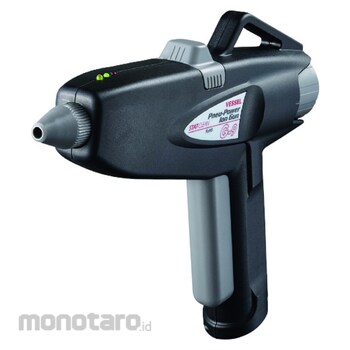

Vessel Pneu-Power Ion Gun
#Grup produk P111782204
Spesifikasi
| Air Connection | Diameter 8 tube compatible, one-touch fitting |
|---|---|
| Air Pressure Used (MPa) | 0.5 |
| Airflow Rate (L/minute) | 200 (0.5MPa) |
| Applied Voltage/Frequency | AC8kVp-p (±5%)/32kHz (typ.) |
| Content Set | Instruction manual |
| Depth (mm) | 50.6 |
| Height (mm) | 191 |
| High Voltage Power Supply | Wire-wound transformer (built-in) |
| Length (m) | 232.5 |
| Material | Body = Polycarbonate; Discharge needle = Tungsten; Nozzle = Resin |
| Static Elimination Method | AC corona discharge method |
| Static Neutralization Method | AC high-frequency corona discharge method |
| Static Neutralization Time (s) | ±1000V -> ±100V 1 or less (0.5MPa, 203L/min, 150) |
| Structure | Direct connection type |
| Type | High-voltage static eliminator |
| Usage Flow Body/Input Pressure | Clean Dry Air |
| Width (mm) | 232.5 |
| Wind Speed (m/s) | 12.3 (0.5MPa, 203L/min, 150) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Be sure to use the specified air pressure (0.3 to 0.6 MPa). - Pulse air cannot be used. (Power generation will not occur correctly.)
Feature
- An innovative ionizer gun that can remove static and dust using only compressed air. - No external power supply required.
- No cable breaks or repairs.
- No separate high-voltage power supply required.
- Since it only uses an air hose, you can rest assured that it won't get caught even when you walk around a lot.
- Excellent static elimination performance and ion balance.
- Low noise.
- Compliant with RoHS2.
Use
- For the pre-painting process of large resin molded products. - For the painting process of automobile sheet metal.
- For assembling electronic equipment.
- For assembling optical equipment.
- Dust removal before various packaging.
