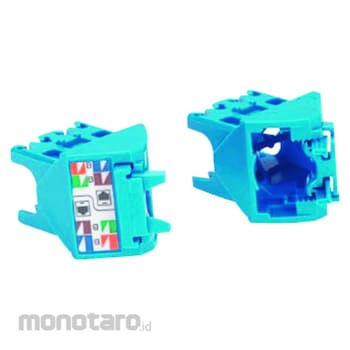

Panduit Left/Right 45 Degree TG Wirecap
#Grup produk P111768462
Spesifikasi
| Applicable Cable | 22 to 26 AWG single wire or stranded wire |
|---|---|
| Applicable Cable Insulation Outer Diameter (mm) | Maximum 1.52 |
| Applicable Cable Outer Jacket Diameter (mm) | 5.08 to 8.38 |
| Compatible Cable | AWG22 to 26 solid wire and stranded wire |
| Depth (mm) | 24.4 |
| Length (mm) | 16 |
| Number of Port | 1 |
| Operating Temperature Range (°C) | -10 to 65 |
| Side Width (mm) | 24.4 |
| Width (mm) | 15.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Cannot be used for rosette boxes.Feature
- Left and right 45 degree angle caps for TG modular jack. - Enables cables with large outer diameters to be routed to modular jacks in tight spaces, such as inside walls, while maintaining an appropriate bend radius.
- Can also be used with multiple modular jacks located next to each other.
- By keeping the bending radius of the Φ6.99mm cable appropriate, the internal depth of the wall or other mounting surface can be reduced by 55% compared to a straight cap. (The straight cap is 27.9mm, while the 45-degree cap is 12.7mm)
- Cable entry is possible at a 45-degree angle to the left and right.
Use
45 degree left and right caps for TG modular jack.Ulasan Produk
