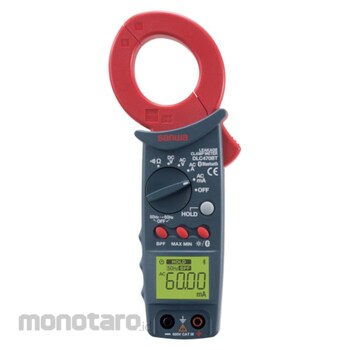

Sanwa Leakage Clamp Meter

- This device is a leak clamp meter for low voltage circuits.
- Use in electrical circuits with a ground voltage of 600Vrms or less.
- Do not input signals exceeding the maximum rated input value.
- Do not use near anything that generates strong electromagnetic waves or is electrically charged.
- During measurement, do not hold the test lead beyond the collar of the test pin or beyond the barrier of the clamp sensor.

- Data transfer via Bluetooth communication is possible
- Noise cut by band-pass filter function that extracts only the frequency band centered on 50Hz/60Hz of ACA and ACmA
- Both leakage current and load current can be measured
- Equipped with a backlight for easy viewing of measured values ​​even in dark areas
- MAX hold/MIN hold function
- Data hold function/auto power off function
- Safety standard: Compatible with IEC61010-1 CAT3.600V
- Count: 600

- For measuring current and leakage current (alternating current) in electrical circuits, electrical equipment, etc.
- For electrical work.
- Electrical management
- Maintenance
