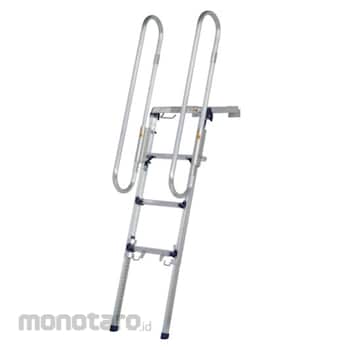

Pica Ladder with Hand Frame
#Grup produk P111766826
Spesifikasi
| Foldable | Yes |
|---|---|
| Hook Effective Width (mm) | 63 |
| Hook Inner Width Dimension (mm) | 63 |
| Installation Dimensions (mm) | Total length 1235xwidth 540xthickness 165 |
| Installation Height (mm) | 99 9 to 1429 |
| Leg Telescopic Pitch (mm) | 25 |
| Legs Maximum Telescopic Width (mm) | 430 |
| Material | Aluminium Alloy |
| Maximum Usable Mass (kg) | 150 |
| Number of Tiers | 4 |
| Setting Total Height (mm) | (including handrail) 1645-2075 |
| Step Spacing (mm) | 317 |
| Storage Dimensions (mm) | 1235x540x165 |
| Top Plate Dimension (mm) | 400x427 |
| Top Plate Height (m) | 1.02 to 1.45 |
| Total Installation Height (Including Handrail) (mm) | 1645 to 2075 |
| Total Length (Excluding Handrail) (mm) | 1024 to 1454 |
| Total Length (m) | (excluding handrail) 1024 to 1454 |
| Tread Spacing | 317 (DXF-14TEA), 283 (DXF-18TEA) |
| Tread Width (mm) | 55 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Do not use with a maximum operating weight of 150 kg or more.Feature
- It is a truck lift step with a foldable handrail. - It is attached to the tailgate part of the truck to support lifting to and from the loading platform.
Use
For lifting onto and lowering truck beds, loading and unloading cargo, etc.Ulasan Produk
