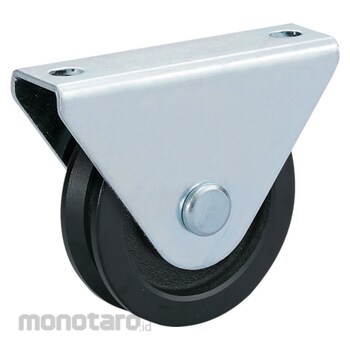

SUGATSUNE Heavy Door Roller
#Grup produk P111761025
Spesifikasi
| Allowable Load (kgf) | 2 wheels = 600 |
|---|---|
| Material | Frame = Steel (SPHC)/Gloss chromate treatment; Wheels = Ductile cast iron/Baked paint (black) |
| Mounting Height H (mm) | 88 |
| Mounting Pitch X (mm) | 94 |
| Mounting Seat A (mm) | 120 |
| Mounting Seat B (mm) | 37 |
| Wheel | V type |
| Wheel Diameter (mm) | 75 |
| Wheel Width (mm) | 26 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- The image is of one of the products in the same series, and the appearance may differ from that of this part number.Feature
- For wheels with a diameter of φ75 or more, rubber seals (sealed and dust-proof) are used in the bearings, providing excellent water resistance. - Can be used outdoors.
- Two bearings are used for wheels with a diameter of φ75 or more, allowing even heavy doors to move smoothly.
- Since there is a gap between the frame and the wheels, even if there is some distortion or misalignment of the rail, it will absorb that distortion and allow smooth movement.
Use
Gate.Ulasan Produk
