Spesifikasi
| Angle Accuracy (°) | ± 1 |
|---|---|
| Height (mm) | 115 |
| Laser Class | Class 2 |
| Laser Safety Standards | PSC |
| Laser Wavelength/Output (N m/mW) | 490 to 560/1 or less |
| Material | ABS Resin |
| Measurement Accuracy (mm) | ±2.0 |
| Measurement Item | Area, volume, Pythagorean measurement |
| Measurement Range (m) | 0.2 to 40 |
| Measurement Reference Position Setting | 3 locations |
| Minimum Display (m) | 0.001 |
| Minimum Display (mm) | 1 |
| Minimum Measurement Unit (m) | 0.001 (1mm) |
| Operating Humidity (%RH) | 80 or less (no condensation) |
| Operating Temperature Range (°C) | 0 to +40 |
| Power Source | AAA Ni-MH rechargeable batteries x 3 or AAA alkaline batteries x 3 |
| Protection Grade | IP54 |
| Thickness (mm) | 26 |
| USB Terminal | Type-C (charging function only) |
| Width (mm) | 49 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Informasi Produk
Warning
- The measurable distance may be shortened in environments that are not suitable for measurement (such as under strong sunlight or on a surface that is weakly reflective). - Accuracy applies from 0.2m to 5m under suitable environment for measurement.
- Over 5m, it may worsen by 0.1mm/m (0.1mm per 1m).
- The environment suitable for measurement (mainly assuming indoor measurements) is: - No strong light in the surrounding area - White reflector - Environmental temperature of 25°C.
- Accuracy may further deteriorate in environments that are not suitable for measurement.

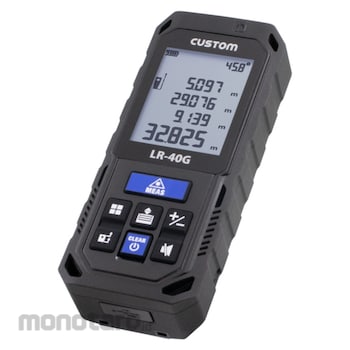

Feature
- Green laser greatly improves visibility of laser light. - Conforms to the Consumer Product Safety Act and has the PSC mark.
- Even long distances can be easily measured by one person without using a tape measure.
- Various measurements such as area, volume, and Pythagorean measurements can be performed.
- The horizontal angle of the main unit can also be measured using a digital level.
- IP54 compliant dustproof and waterproof structure.
- Measurement standards can be set from three locations: the bottom of the main unit, the tripod hole, and the top.
- As it has a tripod hole, it can be attached to a tripod for stable measurements.
- The included Ni-MH rechargeable battery has a lifespan approximately 1.5 times longer than alkaline batteries.
- Also, you can charge the Ni-MH rechargeable battery on the main unit using a commercially available USB (Type-C) charger.
Use
- For various sites such as construction sites, civil engineering work, land surveys, painting, store surveys, renovations, shipbuilding, manufacturing, etc. - For general household measurements such as moving/remodeling.Ulasan Produk
