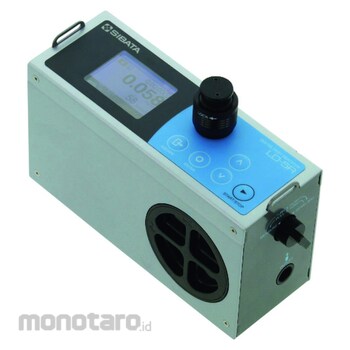

SIBATA Digital Dust Indicator Meter
#Grup produk P111748778
Spesifikasi
| Content Set | Shoulder belt, filter |
|---|---|
| Depth (mm) | 68 |
| Display Contents | integrated count, measurement time, bar graph, instantaneous value (CPM), trend graph, current time, mass concentration conversion value, K value, remaining battery power |
| Height (mm) | 109.5 |
| Light Source | Laser diode |
| Measurement Accuracy | ±10% (relative to standard particles) |
| Measurement Accuracy (µg/m³) | ±10% (relative to standard particles) |
| Measurement Mode | timer measurement, logging measurement, Span check, BG cancel |
| Measurement Principle | Light scattering method |
| Measurement Range (mg/m³) | 0.001 to 10.000 (for standard particles) |
| Measurement Sensitivity | 1CPM=0.001mg/[[M3]] (for standard particles) |
| No Voltage Pulse Output | Open collector, withstand voltage 12V max |
| Resolution (μg/m³) | 1 |
| Suction Flow Rate (L/minute) | 1.7 |
| Voltage Output | 0 to 1 V for 0 to 1000 CPM, 0 to 1 V for 0 to 10000 CPM |
| Width (mm) | 184 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Built-in pump ensures stable suction flow rate. - The integrated count value, instantaneous concentration, and concentration value changes (trend graph) during measurement can be displayed on the LCD screen by switching buttons.
- You can check the maintenance period by calling component information on the screen.
- Logging function allows you to record measured values with simple operations.
- Measurement values recorded during logging measurements can be imported to a personal computer using a communication cable with optional software.
- Our digital dust meter is widely used to measure suspended particulate matter in work environments, etc. As a relative concentration meter using a light scattering method, it has the advantage of being able to obtain data in a shorter time than the filtration method and being able to detect sudden changes in concentration.
- On the other hand, due to the characteristics of the obtained relative concentration, it is necessary to calculate the mass concentration conversion coefficient and correct it to the mass concentration based on the filtration collection method.
- By entering the mass concentration conversion coefficient (K value), you can easily convert the counted value into mass concentration.
