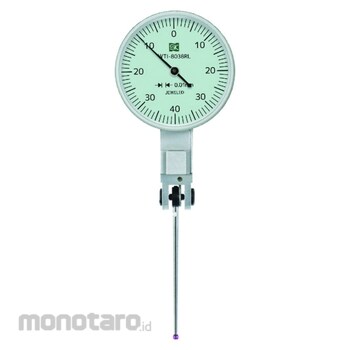

S&K Dial Indicator
#Grup produk P111748130
Sebelum PPN:
Rp3.199.900 - Rp3.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Content Set | ; PC case; ; Stem (with dovetail groove) = Diameter 6, Diameter 8; ; Spanner for measuring head replacement |
|---|---|
| Dial Diameter (mm) | 37.5 |
| Indication Error Full Measurement Range (µm) | 13 |
| Measurement Force (N) | 0.2 or less |
| Measurement Range (mm) | 0.8 |
| Minimum Display (mm) | 0.01 |
| Mounting shaft diameter (mm) | 6, 8 |
| Repeatability (µm) | 3 |
| Return Error (µm) | 9 |
| Scale Specification | 0-40-0 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- The probe can only be replaced for WTI- 80RL and WTI- 80WL.Feature
- A long probe type that can measure deep places that cannot be measured with normal dial indicators. - The probe is a ruby ball and a carbide ball that boast high abrasion resistance.
- The probe is a ruby ball that has high wear resistance, does not conduct electricity, and is not magnetic. - Each bearing has a jewel built into it.
- The scale plate is green.
Use
For measuring displacements such as unevenness of plane, quality of workpiece installation, shaft runout, squareness, etc.Ulasan Produk
