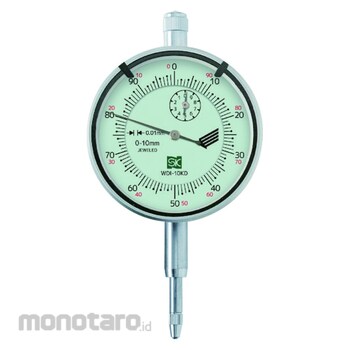

S&K Dial Gauge Kaidan Scale
#Grup produk P111748097
Spesifikasi
| 1/10 Rotation Undication error (μm) | 8 |
|---|---|
| Content Set | ; PC case; ; Lid with ear metal |
| Dial Diameter | 68.5 |
| Dial Diameter (mm) | 68.5 |
| Graduation (mm) | 0.01 |
| Long Hand 1 Revolution (mm) | 1 |
| Material | Body = Steel; Tip of probe = Steel |
| Measurement Range (mm) | 10 |
| Measuring Force (N) | 1.5 or less |
| Measuring Range (mm) | 10 |
| Minimum Display (mm) | 0.01 |
| Mounting shaft diameter (mm) | 8 |
| Repeatability (µm) | 5 |
| Return Error (µm) | 5 |
| Scale Specification | ±0-100 |
| Total Measuring Range Indication Error (µm) | 20 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Newly designed stepped scale prevents misreading of the smallest unit. - Equipped with a limit needle. - Two types of back lids are included: a flat type and a type with ear metal.
- The scale plate is green.
- Two types of back lids are included: a flat type and a type with ear metal.
Use
For measuring displacements such as unevenness of plane, quality of workpiece installation, shaft runout, squareness, etc.Ulasan Produk
