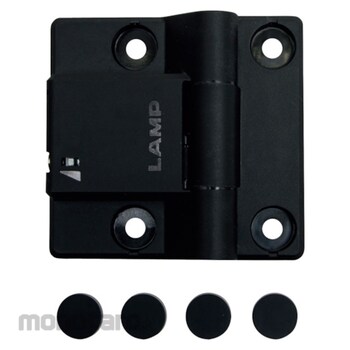

SUGATSUNE Dampening Hinge
#Grup produk P111747113
Spesifikasi
| Applicable Door Height (mm) | 2400 or less |
|---|---|
| Applicable Door Width (mm) | 700 or less |
| Content Set | Screw cover |
| Door Mass (kg/2 pieces) | 1.0 to 7.0 |
| Door Mass (kg/3 pieces) | 7.0 to 12.0 |
| Hole Diameter (mm) | 5.2 |
| Load capacity (2) (kg) | 1.0 to 7.0 |
| Material | Body = Polyamide (PA); Shaft = Steel; Screw cover = Elastomer (TPE) |
| Number of Screw Holes | 4 |
| Thickness (mm) | 17 |
| Total Length (mm) | 65 |
| Width (mm) | 68.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Please install a separate stopper on the housing to prevent it from opening or closing beyond the movable angle.Feature
- Single-axis hinge with soft-close function for side-opening doors. - When closing, the hinge allows the door to close slowly using the force of the damper.
- (Speed adjustable)
- Door closing speed can be adjusted with a hexagon wrench.
- The retraction function allows the door to be slowly pulled in.
