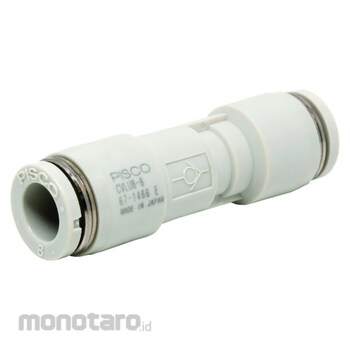

PISCO Check Valve for Low Operating Pressure
#Grup produk P111741252
Spesifikasi
| Applicable Tube Outer Diameter D (mm) | 8 x 8 |
|---|---|
| Fluid Used | Air |
| Material | Resin body = PBT; Valve packing = FKM; Seal rubber = HNBR |
| Minimum Check Differential Pressure (MPa) | 0.01 |
| Minimum Operating Differential Pressure (kPa) | 5 (at 25°C) (pressure at which conduction starts to the secondary side when air is applied from the free flow direction) |
| Operating Pressure (MPa) | -0.1 to 1.0 |
| Operating Temperature Range (°C) | 0 to 60 (no freezing) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Since only the air input from one side flows, it is possible to maintain the pressure on the output side. - Can also be used for vacuum maintenance and low pressure piping.
- It is a low concentration ozone countermeasure product.
