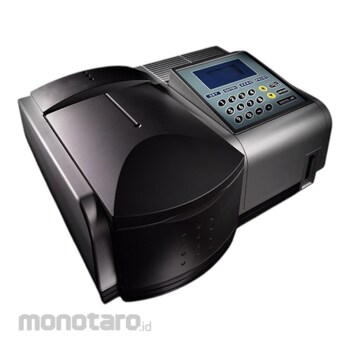

PG Instruments Visible Spectrophotmeter
#Grup produk P111729560
Spesifikasi
| Baseline Flatness (A) | 0.002 (200-1000nm) |
|---|---|
| Baseline Stability (A/hour) | 0.002 (500nm, 0Abs), 2hour warm-up |
| Detector | Silicon photo diode |
| Dimensions (mm) | 476x362x225 |
| Optical System | Split beam ratio |
| Photometric Accuracy (%T) | 0.3 (0-100) |
| Photometric Accuracy (A) | 0.002 (0-0.5), 0.004 (0.5-1) |
| Photometric Mode | Transmittance, Absorbance, Energy |
| Photometric Noise (A) | 0.001 (500nm) 30min warm-up |
| Photometric Range (Abs) | -0.3 to 3.0 |
| Photometric Reproducibility (%T) | 0.15 (0-100) |
| Photometric Reproducibility (Abs) | 0.001 (0-0.5), 0.002 (0.5-1) |
| Power Supply (V/Hz) | Switch mode 95-250AC/50-60 |
| Scan Speed | Selectable |
| Spectral Bandwidth (nm) | 2 |
| Standard Function | Photometric, & Quantitative Measurement |
| Stray Light (%T) | ≤ 0.05 (220nm Nal, 340nm NaNO2); ≤ 1.0 (340nm NaNO2) |
| Wavelength Accuracy (nm) | ±1 |
| Wavelength Range (nm) | 325 to1100 |
| Wavelength Reproducibility (nm) | ≤0.4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The T60V (Visible) has a wavelength range of 325-1100nm. The instrument has a switched mode power supply accepting voltages in the range of 95-240V AC and supplied with either universal pathlength 5 cell changer or fixed path length 8 cell changer as standard. The T60 delivers the functionality and accuracy of an advanced instrument at an affordable price.
Feature
- High performance fixed 2nm spectral bandwidth.- Low stray light 0.05%T (T60U).
- Wavelength accuracy +/- 1nm (T60U).
- Holographic blazed grating 1200lines/mm.
- Local control software for photometric fixed wavelength and quantitative measurements.
- Built in cell holder storage.
- Robust modular design with a small footprint.
- Can be used with UV-WIN software (optional).
