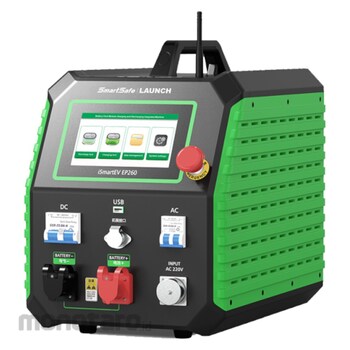

SmartSafe iSmartEV Battery Module Charge/Discharge Module
#Grup produk P111707957
Spesifikasi
| Power Input (V) | AC 90-264 (40-60Hz) |
|---|---|
| Data communication | CAN, RS485 |
| Display (inch) | 7 (TFT LCD Screen, Resolution 800x480) |
| Abnormal Protection | Power Cord Power Failure, Main Cable Power Failure |
| Charge Control | Constant Current Charging + Constant Voltage Charging |
| Charge Current Range | Maximum Current 100A, Maximum Power 4.4kW |
| Charge and Discharge Voltage Range (V) | DC 2-260 |
| Charge, Discharge Protection | Overcharge and Over-Discharge Protection, Over-High Temperature Protection |
| Discharge Current Range | Maximum Current 150A, Maximum Power 7.2kW |
| Discharge Mode | Constant Current Discharge |
| Group Terminal Voltage Accuracy | ≤±0.5%FS+0.3V, Resolution 0.1V |
| Host Protection | Over-Temperature, Over-Current adn Out-Of-Control Current Trigger Shutdown Protection |
| Over-Temperature Protection | The Resistance Box Over-Temperature is 85C, Radiator Over Temperature is 100C |
| Reverse Polarity Protection | Supported |
| Single Voltage Accuracy | ≤±0.1%FS+5mV, Resolution 0.001V |
| Test Current Accuracy | ≤±0.1%FS+0.2A, Resolution 0.1A |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
It employs the state of the art charging and discharging technique, and according to the charging and discharging characteristics of lead-acid batteries and lithium-iron batteries, a variety of test and maintenance modes are built in, which is suitable for the discharging, charging, cyclic charging and discharging tests of various lead-acid batteries and lithium-iron batteries available in the market.
Feature
- Multi-purpose Wide voltage range design, suitable for different voltage level module discharging, charging, activation testing.
- Efficient charging mode
Ensure that the battery pack is fully charged, greatly improve the charging efficiency.
- Information collection
It can collect the highest/lowest voltage, temperature and other data of a single string battery. The collected data are displayed on the screen in the form of column chart, report form and curve, which can be zoom in/out locally for easy viewing.
- Multiple discharge modes
high-efficiency aviation original materials and advanced control technology are adopted to ensure high-efficiency discharge.
- Battery pack activation
Freely set charging and discharging rules and number of activation times to effectively improve battery capacity.
- Protection alarm
Reverse polarity, too high temperature, short overcurrent, fan failure, too high voltage, too large current will be alarmed.
