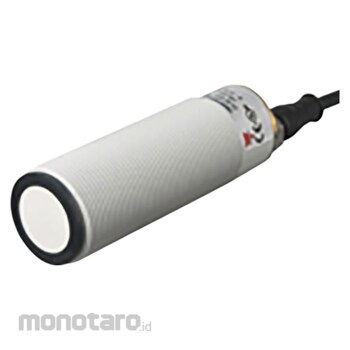

A self-contained multi function diffuse ultrasonic sensor with a sensing range of 50 to 2200 mm in three ranges. 2 switching outputs easely set up for two different output modes and adjusted by teach in makes it ideal for level control tasks in a wide variety of vessels. A sturdy one-piece polyester housing provides the perfect packaging for the sophisticated microprocessor controlled and digitally filtered sensor electronics. Excellent EMC performance and precision are typical features of this sensor on true distance Measurement.
Cylindrical M18 PBT housing
Sensing distance: 50-2200 mm
Power supply: 15 to 30 VDC
Outputs: Two multi function switching outputs. PNP or NPN
Setup: Normal switching or adjustable hysteresis
Repeatability 0.5%
Beam angle. ±7° or ±8°
Protection: Short-circuit, reverse polarity and overvoltage
2 m cable or M12 plug
CARLO GAVAZZI Ultrasonic Threaded Barrel Proximity Sensor
#Grup produk P111701829
Sebelum PPN:
Rp14.999.900 - Rp21.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Body Style | Threaded Barrel |
|---|---|
| Connection Type | M12 |
| IP Rating | IP67 |
| Maximum DC Voltage (V) | 30 |
| Minimum Operating Temperature (°C) | -20 |
| Output Function | NO/NC |
| Sensor Technology | Ultrasonic |
