The PD30CNT15 sensor family comes in a compact 10 x 30 x 20 mm reinforced PMMA/ABS housing. The sensors are useful in applications where high-accuracy detection as well as small size is required. Compact housing and high power LED for excellent performance-size ratio. The potentiometer function for adjustment of the sensitivity makes the sensors highly flexible. The output type is preset (NPN or PNP),and the output switching function is NO and NC Output.
Miniature sensor range
Range: 15 m
Sensitivity adjustment by potentiometer
Modulated, infrared light 850 nm
Supply voltage: 10 to 30 VDC
Output: 100 mA, NPN or PNP preset
Make and break switching function
LED indication for output, stability and power ON
Protection: Short-circuit, reverse polarity and transients
Cable and plug versions
Excellent EMC performance

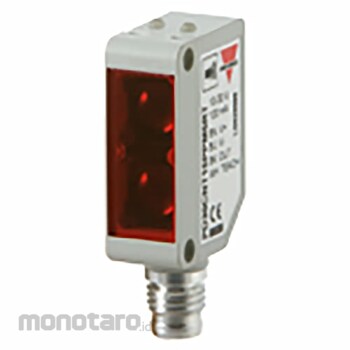

CARLO GAVAZZI Through Beam Photoelectric Receiver
#Grup produk P111701740
Spesifikasi
| Detection Range (m) | 15 |
|---|---|
| Detection Type | Through Beam |
| Electrical Connection | M8 4 Pin Connector |
| Housing Material | ABS |
| IP Rating | IP67 |
| Maximum DC Voltage (V) | 30 |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -25 |
| Output Type | PNP NO/NC |
| Response Time (ms) | <1 |
| Sensor Type | Miniature |
| Series | PD30 |
| Terminal Type | M8 Connector |
| maximum Current (mA) | 25 |
