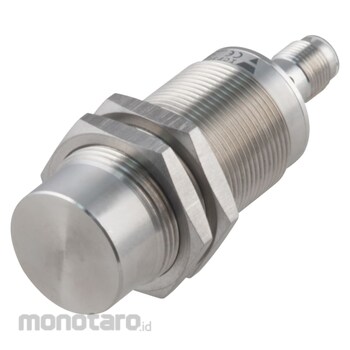

The Carlo Gavazzi inductive sensor features an M30 stainless steel body and an M12 plug, with a sensing distance (Sn) of 22mm, designed for non-flush mounting and a long body. It supports NPN/PNP/Push-pull outputs, NO/NC, operates within a supply voltage of 10-30VDC, and has a maximum output current of 200 mA. The maximum switching frequency is 150 Hz, the operating temperature range is -40°C to +85°C, and it can withstand a maximum pressure of 100 bar. The sensor is rated IP68 and IP69K and features IO-Link.
Rated operating distance 22 mm
Installation type Non-flush
Diameter M30
Output type PNP/NPN
Output function Programmable/configurable
Connection type Connector M12
Housing type Cylindrical threaded barrel
Housing material Metal
Rated power supply 10 V to 30 V
CARLO GAVAZZI Inductive Barrel Proximity Sensor
#Grup produk P111700981
Spesifikasi
| Body Style | Barrel |
|---|---|
| Connection Type | Plug |
| Detection Range (mm) | 22 |
| Digital Switching Output Type | IO-Link |
| Output Function | NO/NC |
| Sensor Technology | Inductive |
| Supply Voltage (V) | 10 to 30 dc |
| Thread Size | M30 |
