The Carlo Gavazzi earth leakage monitoring relay is a modular residual current relay which, in conjunction with the MCB and the CT, provides protection against possible risks arising from insulation or grounding faults, by interrupting the mains on faulty loads or lines. The setpoint of the leakage current is factory set to 30mA or 300mA according to model and it is not adjustable. The device is equipped with two changeover relay outputs. One output triggers at 60% of fault current setpoint value providing a warning to user, the other output is used to shut down the system to prevent accidents.
Fixed trip level, easy setup "Plug's Play"
Nuisance tripping safe
Remote R/T button
DIN rail mounting

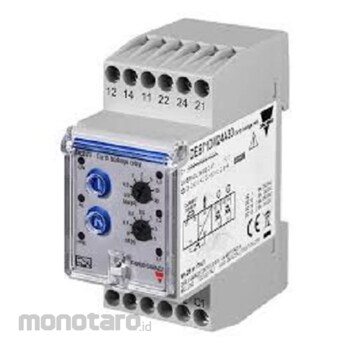

CARLO GAVAZZI Earth Leakage Relay
#Grup produk P111700909
Sebelum PPN:
Rp9.399.900 - Rp9.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Dimensions (mm) | 70.4x35.5x81 |
|---|---|
| Electrical Phase | 1, 3 |
| Mounting Type | DIN Rail |
| Series | DEB71 |
