Carlo Gavazzi Single-function Timer Relay
The Carlo Gavazzi single-function, timer relay is compact, electromechanical equipment with high precision. It performs the function of providing ON delay in the range of 0.1 seconds to 100 hours. This timer relay is easy to use and quick to configure. This provides a reliable timing solution that is suitable for back and front panel mounting. Its low cost and high performance make it ideal for a wide range of applications in process control environments.
Certifications
IEC 60664
IEC 60038
EN 60529
IP20 rated
CE certified
UL approved
CSA certified
RINA certified
EN 61000-6-2
EN 61000-6-3

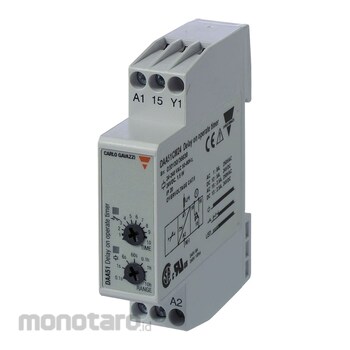

CARLO GAVAZZI DIN Rail Mount Timer Relay
#Grup produk P111700866
Sebelum PPN:
Rp4.999.900 - Rp6.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Contact Configuration | SPDT |
|---|---|
| Contact Material | Silver Tin Oxide |
| Depth (mm) | 81 |
| Length (mm) | 67.2 |
| Maximum Current (A) | 5 |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -20 |
| Mounting Type | DIN Rail |
| Number of Contacts | 2 |
| Power Supply | External |
| Switch configuration | SPDT |
| Terminal Type | Screw |
| Time Delay (ms) | ≤100 |
| Time Increment | Hours, Minutes, Seconds |
| Time Range (second to hour) | 0.1 to 100 |
| Width (mm) | 17.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
7 selectable time ranges in the range of 0.1 seconds to 100 hours like 0.1 seconds to 1 second, 1 second to 10 seconds, 6 seconds to 60 seconds, 60 seconds to 600 seconds, 0.1 hours to 1 hour, 1 hour to 10 hours and 10 hours to 100 hoursKnob selection of time range
Knob adjustable time setting
Automatic start
2C/O SPDT contact configuration with relay output 5A
Repeatability of ≤ 0.2%
Supply voltage 24VDC and 24VAC to 240VAC
For mounting on DIN-rail
LED indication for relay status and power supply on
Combined AC and DC power supply
Use
Applications- Textiles
- Chemical industries
- Mining
- Irrigation
- Raw material handling
- Food and beverages
- Industrial process control
