The PD30CTB20 sensor family comes in a compact 10 x 30 x 20 mm reinforced PMMA/ABS housing. The sensors are useful in applications where high accuracy detection as well as small size is required. Compact housing and high power LED for excellent performance-size ratio. The potentiometer function for adjustment of the sen-sitivity makes the sensors highly flexible. The output type is preset (NPN or PNP), and the output switching function is NO and NC out-Put.
Miniature sensor range
Range: 200 mm
Sensitivity adjustment by top potentiometer
Modulated, infrared light 850 nm
Supply voltage: 10 to 30 VDC
Output: 100 mA, NPN or PNP preset
Make and break switching function
LED indication for output, stability and power ON
Protection: reverse polarity, short circuit and transients
Excellent EMC performance
Exellent colour matching

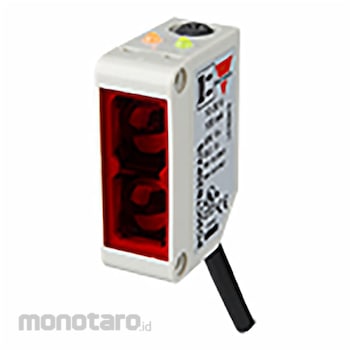

CARLO GAVAZZI Diffuse Photoelectric Sensor Miniature Sensor
#Grup produk P111700787
Sebelum PPN:
Rp4.799.900 - Rp5.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Detection Range (mm) | 200 |
|---|---|
| Detection Type | Diffuse |
| Electrical Connection | Cable |
| Housing Material | ABS |
| IP Rating | IP67 |
| Maximum DC Voltage (V) | 30 |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -25 |
| Output Type | PNP NO/NC |
| Sensor Type | Miniature |
| Series | PD30 |
| Terminal Type | Cable |
