The Carlo Gavazzi Capacitive Proximity Sensor is a ATEX approved capacitive sensor in thermoplastic polyester for mounting in PG36 screw gland. It is available with adjustable sensing distance and with or without built in time delay. The relay output ensures that the load can be driven directly. It is classified as equipment for use in atmospheres with continuous presence of explosive dust with an ignition temperature above 85 degree Celsius. It is excellent for use in the agriculture area.
CE marking
IP67 degree of protection
TRIPLESHIELD sensor protection
Transients and reverse polarity protection

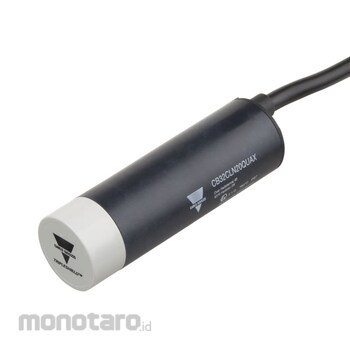

CARLO GAVAZZI Capacitive Smooth Barrel Proximity Sensor
#Grup produk P111700626
Spesifikasi
| Body Style | Smooth Barrel |
|---|---|
| Cable Length (m) | 2 |
| Connection Type | Pre-Cabled |
| Detection Range (mm) | 20 |
| Digital Switching Output Type | Relay |
| IP Rating | IP67 |
| Length (mm) | 101 |
| Maximum DC Voltage (V) | 28 |
| Maximum Operating Temperature (°C) | 40 |
| Maximum Switching Frequency (Hz) | 5 |
| Minimum Operating Temperature (°C) | -20 |
| Mounting Type | Non-Flush |
| Output Function | NO+NC |
| Sensor Technology | Capacitive |
| Series | CB32CLN |
| Shielding | Unshielded |
| Supply Voltage (V) | 24 ac/dc |
| Switching Frequency (Hz) | 5 |
