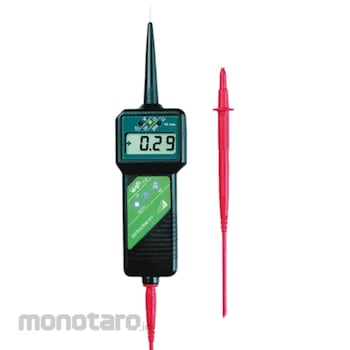

Gossen Metrawatt Low Resistance Ohmmeter
The Gossen Metrawatt digital ohmmeter is a battery-powered instrument for the measurement of low-value resistances up to 200ohm in electrical systems. Large protective conductor, earthing, equipotential bonding and lightning protection systems can also be tested quickly and safely with the help of this device. Resistance is measured between reference earth (e.g. an equipotential bonding strip) and any desired points to this end. A measuring current rating of 200mA (in the 20ohm range) and automatic functions assure reliable measuring results.
GOSSEN METRAWATT Ohmmeter
#Grup produk P111699764
Spesifikasi
| Battery Type | 9V |
|---|---|
| Height (mm) | 40 |
| Length (mm) | 60 |
| Maximum Accuracy (%) | +1.5 + 4 digits |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Resistance Measurement (kΩ) | 1999 |
| Minimum Accuracy (%) | ±1.5 + 4 digits |
| Minimum Operating Temperature (°C) | -10 |
| Power Source | Battery |
| Resistance Measurement Resolution (MΩ) | 10 |
| Series | METRAOHM 413 |
| Width (mm) | 230 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Compact and durable for rugged service calls and laboratory use- Indication of interference voltage
- Measurement cable zero balancing
- Offset Balancing
- Measuring ranging between 0.01ohm and 1999kohm
- Overvoltage protection protects the instrument in the event of inadvertent connection to mains voltage
Use
Application :- Fuse and cable resistance
- Instrumentation systems
- Relays power contactors and load interrupters
- Transformers, coils and small motors
