Attachment, removal and positioning to the shaft can be done with a single hexagonal wrench or socket wrench.
The principle of tapered interference fit provides the same tightening force as a shrink fit. Safe and reliable power transmission is achieved.
Isomec SP pulleys are V-pulleys based on the international standard ISO 4183-1989 "Pulleys for general purpose V-belts and narrow V-belts." The
tolerance for imbalance on the outer circumference is set to either 1g or 0.1% of the total weight of the pulley and bushing, whichever is greater, and balance adjustment is performed using a balancing machine.
NBK (Nabeya Bi-tech Kaisha) SP Pulley SP8V
#Grup produk P111696721
Spesifikasi

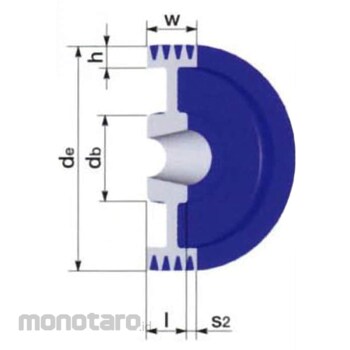

| Number of Grooves | 4 |
|---|---|
| Outer Diameter (mm) | phi 356 |
| Rim Width (mm) | 123.8 |
| Hub db (mm) | 200 |
| Hub Length (mm) | 85 |
| Bushing Part Number | S1 |
| Hub s2 (mm) | 38.8 |
| Moment of Inertia (kg-m²) | 0.968 |
| Rim h (mm) | 40 |
| Shape Drawing Number | 40U |
