A single hexagonal wrench (type 1 bushing) can be used to attach, remove and position the shaft of rotating electric equipment such as V-pulleys and polydrive pulleys.
In addition, once the bushing position is determined, the pulley is automatically fixed in that position, making it easy to adjust the alignment.
No additional work is required on the pulley, such as shaft holes, keyways, tapped holes for set screws and tapped holes for extraction.
In addition, there is no need to process the shaft into steps or for parts such as shaft collars, set screws and end plates. It functions completely with just the pulley and bushing.
NBK (Nabeya Bi-tech Kaisha) Isomec SP Pulley SPB-4
#Grup produk P111696703
Spesifikasi

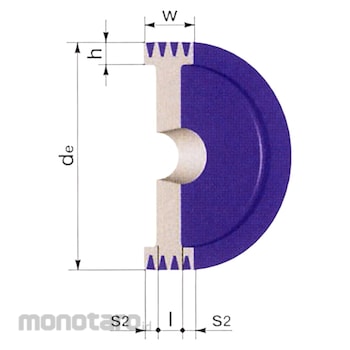

| Rim h (mm) | 22.5 |
|---|---|
| Datum Diameter (mm) | phi 195 |
| Outer Diameter (mm) | phi 202 |
| Rim Width (mm) | 82 |
| Hub Length (mm) | 45 |
| Bushing Maximum Shaft Hole Diameter (mm) | 60 |
| Bushing Part Number | 2517 |
| Hub s2 (mm) | 18.5 |
| Moment of Inertia (kg-m²) | 0.0538 |
