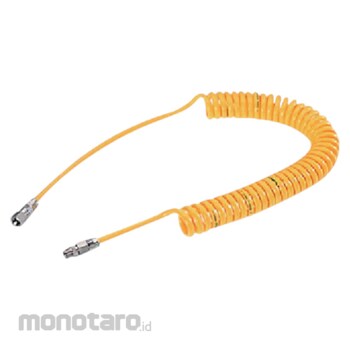

CHIYODA Tough Coil
#Grup produk P111686326
Spesifikasi
| Coil Diameter (mm) | 42 |
|---|---|
| Coil Length (mm) | 650 |
| Color | Yellow |
| Fluid Temperature (°C) | -5~60 |
| Hose Inner Diameter x Outer Diameter (mm) | 5x8 |
| Hose Installation Port | R1/4*G1/4 |
| Inner Diameter (mm) | 5 |
| Maximum Operating Pressure (MPa) | 0.8 |
| Operating Temperature Range (°C) | -5 to +60 |
| Outer Diameter (mm) | 8 |
| Total Length (mm) | 1050 |
| Usage Range (m) | 3.6 |
| Using Fluid | Compressed Air |
| Working Pressure (MPa) | Compressed Air 0.8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
●Spiral for spatter-resistant environments
Feature
●Polyurethane is covered with flame-retardant resin. ●This hose is resistant to melting even with sparks and high-temperature chips. ●Lightweight and flexible. ●Equipped with female screw fittings as standard on both ends.Use
●Spiral for spatter-resistant environmentsUlasan Produk
