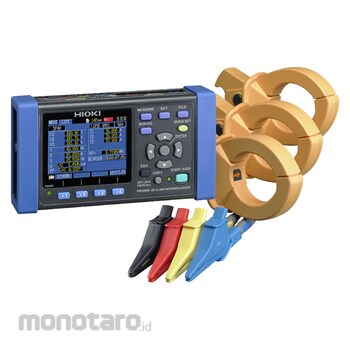

Hioki Power Logger Kit
#Grup produk P111640209
Kondisi Barang:
Spesifikasi
| Measurement | Voltage, Current, Power, Demand |
|---|---|
| Harmonic Analysis | Not included with this model |
| Load current (A) | 50/100/500/1000/5000 (with CT9667-03 flexible AC current sensor) |
| Measurement Line Type | Single-phase 2 or 3 wire; 3-phase 3 or 4 wire |
| Input Channels | Voltage (3 channels U1 to U3), Current (3 channels I1 to I3) |
| Communication | LAN, USB 2.0 |
| Dimensions (mm) | 180x100x68 |
| Display (inch) | 3.5 TFT color, LCD (320x240 pixel) |
| Measurement Line Frequency (Hz) | 50/60 |
| Pulse Input | No-voltage contact input (counts when shorted terminals open); HI: 2 to 45 V, LO: 0 to 0.5 V |
| Pulse Measurement Range | 0 to 9999 |
| Pulse Output | Open collector 30 V, 5 mA (maximum) |
| Voltage (V) | 600 AC (Single Range) |
