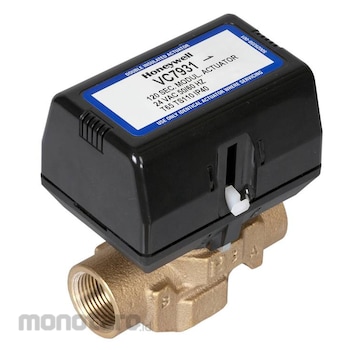

HONEYWELL Three Way Modulating
#Grup produk P111638499
Sebelum PPN:
Rp2.199.900 - Rp2.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Operating (°C) | 0 to 65 |
|---|---|
| Ambient Storage (°C) | -40 to +65 |
| Atmosphere | Non-condensing, Non-corrosive, Non-explosive |
| Body Material | Bronze |
| Cartridge Material | RytonTM and NorylTM |
| Fluid Temperature (°C) | 1 to 95 |
| Input Impedance (kΩ) | 47.5 |
| Input Voltage (VDC) | 0/2 to 10 (actual 2 to 9) |
| Label Color Code | Blue |
| Maximum Duty Cycle (%) | 15% |
| Nominal Timing (s) | Opens in 120 @60Hz Actual Full Stroke Timing is 140 |
| O-Ring Seal Material | EPDM Rubber |
| Power Consumption (W) | Max. 4 (during valve position change) |
| Pressure Diffential (bar) | Max. 4 |
| Pressure Rating (bar) | Static = 20; Burst = 100 |
| Stem Material | Stainless Steel |
| Stem Travel (mm) | 10 |
| Supply Voltage | 24Vac, 50/60Hz, Class 2 circuit |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The VC7900 Series Modulating Control Valves provide precision flow control of hot or chilled water in various heating and cooling applications. The VC hydronic valve consists of a valve body and replaceable characterized cartridge assembly. When used with a Honeywell VC7900 actuator, the valve provides proportional flow in modulating, diverting or mixing applications. They are designed to provide sinusoidal valve actuator travel, and therefore operate silently and resist water hammer. The VC7900 series valve actuator is used with any 0-10 Vdc or 2-10Vdc controller.
Warning
Use 24V Class 2 transformer and provide 6 VA for connection wire sizing.Ulasan Produk
