Application
T6861 digital thermostats are designed for application of 3-speed fan and valves in fan coil system.
Including:
2-pipe cool only/heat only/manual changeover and
4-pipe manual or automatic changeover
Ventilation mode
Manual or automatic 3-speed fan control
Water valve control
Fan speed can be selected to automatic or manual
3-speed control mode.
In ventilation mode, fan only support manual speed control.

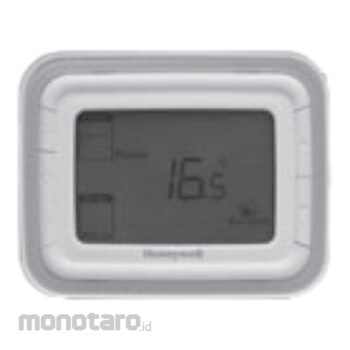

HONEYWELL T6861 Series Large LCD Digital Thermostat
#Grup produk P111638453
Sebelum PPN:
Rp1.199.900 - Rp1.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy (°C) | +/-1 at 21 |
|---|---|
| Backlight | Blue |
| Color Ring | White |
| Control Algorithm | PI, on/off output |
| Frequency (Hz) | 50 |
| Installation | 86x86mm box |
| Load Rating (A) | Fan 4(2), Valve 2(1) |
| Manual/Automatic Fan | Y |
| Operating Temperature (°C) | -18 to 49 |
| Pipe | 2/4 Pipes |
| Power Supply (V) | 220 |
| Protection Class | IP20 |
| Relative Humidity (%RH) | 5 to 95 |
| Relay Life (times) | 100000 |
| Setpoint Range (°C) | 10 to 32 |
| Ventilation | Y |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Super modern appearance design, suitable for office, hotel and residential building - Horizontal and vertical model available for variant application
- Slim design, direct installation on 86 size box
- Stylish and elegant blue/green backlight with blue/green colour ring
- 2-pipe/4-pipe integrated into one unit with easy configuration
- Big LCD display with English and icons
- Easy to install and set-up
- Time on/off function
- Selectable room temperature or setpoint display
- Manual or automatic fan speed selection
- Remote temperature sensor
- Energy saving mode activation by button press or dry contact (key card)
- Cycle per Hour (CPH) function
- Adjustment of display room temperature
- Temperature unit either °C or °F
- User setting can be kept when power off
- Freezing protection function available
- Lock or unlock keys or part of keys in Installer Set up
- Heat and cool setpoint limitation for energy saving
