APPLICATION
According EN 806-2 pressure reducing valves of this type protect household water installations against excessive pressure from the supply. They can also be used for industrial or commercial applications within the range of their specification.
By installing a pressure reducing valve, pressurisation damage is avoided and water consumption is reduced.
The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation. Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.

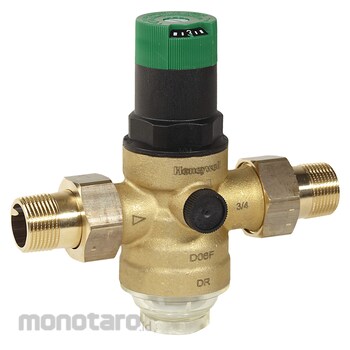

HONEYWELL Screw Pressure Reducing Valve
#Grup produk P111638417
Sebelum PPN:
Rp1.799.900 - Rp6.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connection Type | External Threaded Connection Set On In And Outlet |
|---|---|
| Filter Bowl | Clear |
| Maximum Inlet Pressure with Clear Filter Bowl (bar) | 16 |
| Maximum Operating Temperature Medium with Clear Filter Bowl (°C) | 40 |
| Medium | Drinking water |
| Minimum Pressure Drop (bar) | 1 |
| Outlet Pressure (Bar) | 1.5-6 |
| Preset Outlet Pressure (bar) | 3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Inlet pressure balancing – no influence on outlet pressure by fluctuating inlet pressure- Up to size 1 1/4inch approved by LGA for low noise, Group 1 without limitations
- The valve insert is of high quality synthetic material and can be fully exchanged
- The outlet pressure is set by turning the adjustment knob
- The set pressure is directly indicated on the set point scale
- The adjustment spring is not in contact with the drinking water
- Integral fine filter
- Also available without fittings
- Conforms to BSEN 1567
- All materials are UBA conform
- All materials are ACS approved
