Application
T6800 digital thermostats are designed for application of 3-speed fan and valves in 2-pipe fan coil system.
Including:
2-pipe cool only/heat only/manual changeover between heat and cool
Ventilation mode
Manual or automatic 3-speed fan control
Water valve control
Fan speed can be selected to automatic or manual 3-speed control mode. In ventilation mode, fan only support manual speed control.

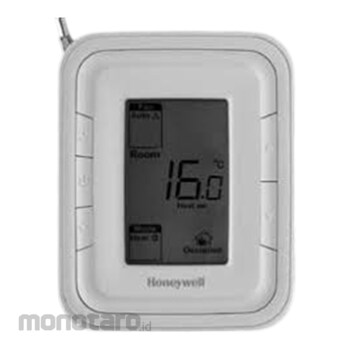

HONEYWELL Hallo Digital Thermostat On/Off
#Grup produk P111638259
Spesifikasi
| Accuracy (°C) | +/-1 at 21 |
|---|---|
| Control Algorithm | PI, On/off output |
| Cycle Time | 100000 |
| Display Range (°C) | 0 to 37 |
| Energy Saving | Y |
| Frequency (Hz) | 50/60 |
| Installation | Installed on 86x86mm junction box or US2x4 inch |
| Manual/Automatic Fan | Y |
| Operating Temperature (°C) | 18 to 49 |
| Operating Voltage (V) | 220 |
| Power Supply (V AC) | 110 (+/-10%), 220(+10%, -15%) |
| Protection Class | IP20 |
| Rating Capacity | For 220V power supply = 4(2)A for fan load, 2(1)A for zone valve; For 110V power supply = 4(2)A for fan load, 2(1)A for zone valve |
| Relative Humidity (%RH) | 5 to 90 |
| Remote Sensor | Y |
| Setpoint Range (°C) | 10 to 32 |
| Ventilation | Y |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Super modern appearance design, suitable for office, hotel and residential building - Slim design, direct installation on 86 size box
- Big LCD with English and icon display
- Easy to install and set-up
- Selectable room temperature or setpoint display
- Manual or automatic fan speed selection by button press
- Remote temperature sensor
- Energy saving mode activation by button press or dry contact (key card)
- Cycle per Hour (CPH) function
- Adjustment of display room temperature
- Temperature unit either °C or °F
- User setting can be kept when power off
- Freezing protection function available
- Lock or unlock keys or part of keys in Installer Set-up
- Heat and cool setpoint limitation for energy saving
